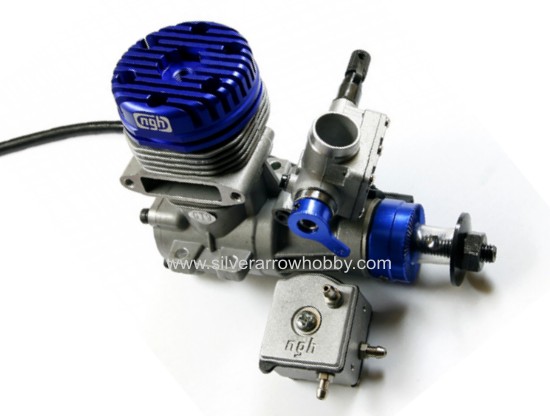

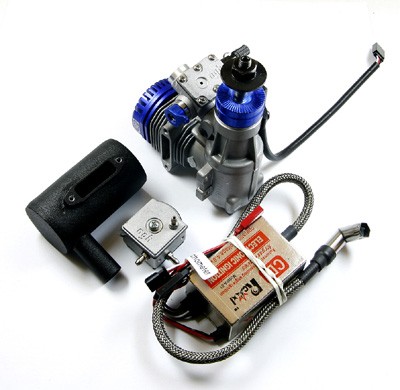

9cc is EQUAL WITH 2 Stroke 46- 56 Nitro Engine
This is a new generation of small gas quality engine, it combines the advantages of both Nitro and gasoline engines, compact in size, light weight, fuel economy, reliable and powerful.
Still Think To use Nitro Engine ?
Difficult To Find / Ship Nitro Fuel ?
Short 10 Minutes Fly ?
Expensive Fuel Cost ?
Now You Got The Answer for your Small Plane 46-56 Size.........
Time to forget to stock Nitro fuel..... Nitro Age is Gone.. You just Need to go Gas stations ... Buy Pertamina Premium Fuel... fill it... you fly more than 10 minuters to hours.
Specifications :
Engine Type: Gasoline Two-stroke, Air Cooled
Displacement (cc): 9.07cc
Bore x stroke (mm): 23.35 x 21.2
Carburetor: NGH made 60G needle with pump membrane
Max output: 0.8HP@15000RPM
RPM Range: 2600-15000RPM
Ignition: Auto advanced Rcexl DC-CDI with special spark plug cap
Spark plug type: 1/4 x 32 Rcexl
Ignition Power: 4.8V
Lubrication Oil: 2 cycle engine Oil API TC/JASO FD or better specs. (Mobil + M2T)
Break-in fuel oil ratio: 25:1 (4%)
General use fuel: 30:1 (3%)
Recommended propellers: 10 x 6 to 12x6 (two blades)
Weight: 425g (without ignition)
545g complete
NGH 9 CC Easy To Start

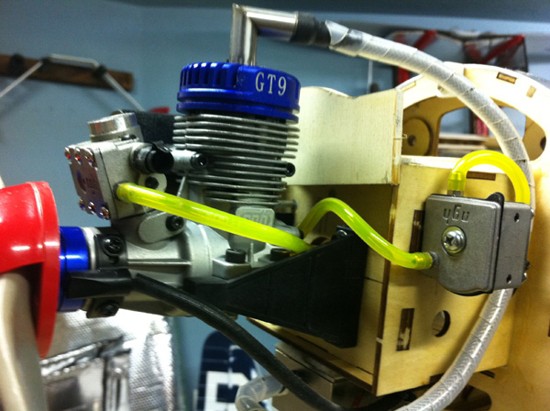

Flight Test
|
|
