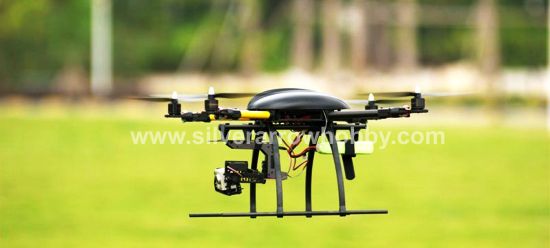

XAircraft X650 is a remote control four rotor mini helicopter designed for the model aircraft enthusiasts which powered by lithium battery. It flies stably by four well controlled individual propellers(12-inch 60-pitch) direct-driven from four brushless motors. Fly forward, backward, left, right, up, down… by radio control equipment. Compared with traditional helicopters, the X650 quadcopter/quadrotor is a ideal platform for first person flight(FPV) to bringing you a brand-new flying experience. Support 13 sensors as flight attitude, height, direction, position (XAircraft GPS Module-Require additional purchase), temperature, and power consumption. With the help of XAircraft flight control algorithms, the X650 is easier to fly than other types of helicopters, and has quite good stability. X650 quadcopter/quadrotor mainly use aluminum alloy and glass fiber materials make sure the mechanical structure is durable and shatter-resistant.

Anti-Vibration Camera Mount: Made of glass fiber. Damping design plus flight control algorithms ensures the high quality of the photos and videos taken in flight period. The damping design filter the high-frequency vibration, and the flight control algorithms control the steering gear to filter the low frequency jitters and make the equipment balance automatically. Propeller & BrushLess Motor: Exclusive efficient propellers, good quality in folding endurance and breaking-proof. It will not easy to crack at low temperature. The temperature ranges from -10? to 50?(14?-122?). Propellers driven by brushless motors directly offer efficiency of up to 9g/W under rated load, each group of propeller and motor can provide thrust as much as 700g, which ensures the sate flight with 1600g take-off weight at most.

Flight controller: Provide 12-channel control signals input, X650 quadcopter/quadrotor need 4 channels for basic flying at least, if you want to adjust the shutter and the camera angle, you need two additional channels, the remaining channels for extension using, such as GPS fixed-point, fixed height, fixed direction. X650 Flight Control Unit: 3-axis gyroscope 3-axis acceleration sensor Optional 3-axis magnetic field sensor Output: Euler angles (Pitch, Roll, Yaw) (units deg), 3-axis angular velocity (in deg/s), 3-axis acceleration (in g) X650 Input, Output and Control Unit 12-channel remote control input 12-channel control signal output, ALL channel support UltraPWM ESC, General Electric Adjustment, high-speed digital servo, general servo. 2 built-in modules: input control signal module and output module 5 expansion module interface for connecting AHRS, GPS, RF modules. 1 Link interface for connecting USB-Link or wireless module. X650 ESC-A4 High-Speed (UltraPWM) Electric Speed Control Device 4 Electric speed control device designed into one, line connect easy and safe. Up to 60 MOS, able to withstand the high current. Continue to provide 35A output current in the 3s battery. 5A output capacity integrated(UBEC). Support UltraPWM protocols and the control frequency up to 500Hz (2ms).

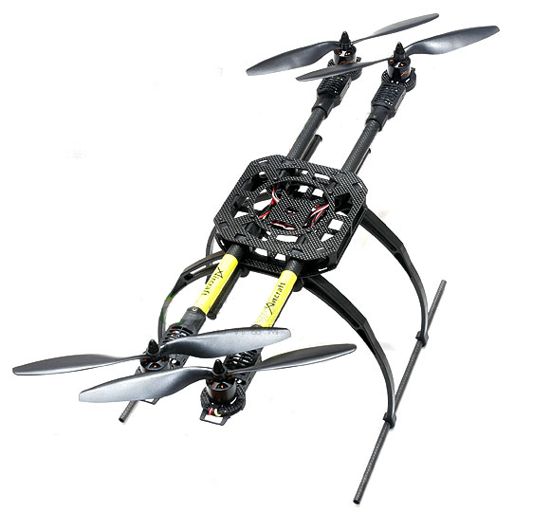

In folding position, easy to store and ready to fly again in seconds.

Features:

• Model optional? X650C(Carbon Fiber).
• Flight Mode: Users can change to Hover Mode and Cruise Mode in the flight.
• Flight Style: Users can choose "Quadcopter Plus Style" or "Quadcopter Cross Style" to fly, the Flight Style can be set by XAircraft Configuration software.
• Empty Frame Weight: 950g in carbon fiber (receiver and battery not included)
• Payload Capability: 850g in carbon fiber ( battery, receiver, and camera included)
• Maximum Gross Take-Off Weight: 1800g. DO NOT OVERLOAD ON X650 WHICH CAN LEAD TO DANGER.
• Airborne period: >12mins (with 3S 3300mAh battery, payload under 1500g)
• Cell Chemistry: 3S 2200mAh ~ 5500mAh /4S 2200mAh ~ 5500mAh Lithium Polymer, and instant discharge capacity>15C.
• Support a 12-CH receiver at most. Compatible with all the RC devices. It needs at least 5 channels to fly your aircraft. We recommend you to use RC device with 6 channels or more for expansion.
• Support 12-CH outputs at most. Compatible with XAircraft UltraPWM Hi-Speed ESC and normal ESC.
• Support Tilt or Pan/Tilt Camera Mount compatible with both normal and Hi-Speed digital servo.
• Good expansibility , utilize GPS Module(optional) together with Compass(optional) that can realize position hold, height lock, heading lock and Go Home.
• Provide varied parameters to fulfill different fly hobby and maintain stability under different payload. You can use XAircraft Configuration Software to set parameters on X650.

Package Includes :

• 1x X650V4 Fuselage(Landing Gear?Carbon Fiber, Plastic)
• 1x X650V4 High Strength Fuselage Cover
• 4x new type External Rotation Brusless Motor
• 4x 10A Brushless ESC
• 2x 10 inch Clockwise Propeller
• 2x 10 inch Counter-Clockwise Propeller
• 1x XAircraft FC1212-P Flight Control Unit
• 1x XAircraft AHRS-V2 Attitude Sensor
• 1x XAircraft USB-Link PC Linker
• 1x XAircraft Flight Control Management(Parameter Adjustment) Software
• One year free updates of flight control management software and firmware
• 8 hours X 5days Email technical support
